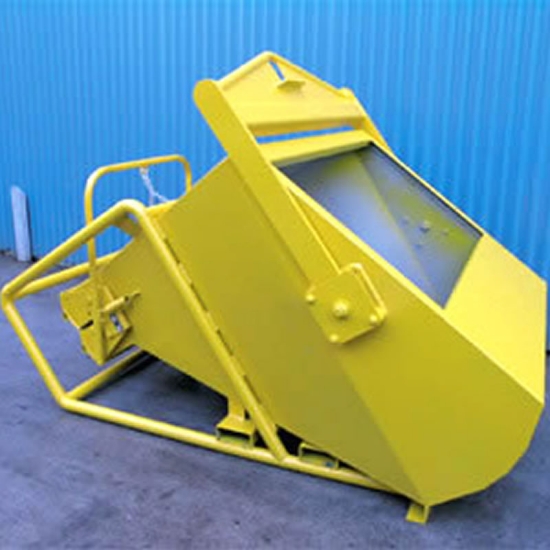

Hydraulic Concrete Kibble Laydown - 3.0cu.m, Clamshell gate + funnel with lay flat hose Perth

Hydraulic Concrete Kibble Laydown - 3.0cu.m, Clamshell gate + funnel with lay flat hose Perth

Features

• Suits large applications with models available for up to 3cu.m capacity
• Roll-over (laydown) style allows filling from concrete dispensing chute
• Fitted with a lever operated 400mm x 400mm clamshell gate with auto close
• Removable concrete funnel with 2m lay-flat hose allows controlled flow when filling wall cavities, columns or narrow formwork
• 4 point lift crane lugs fitted to increase safety and reduce weight
• Fork pockets fitted for transport around the work site
• Also available in slide valve operated models (SV) or remotely controlled hydraulic slide valve models (SVH) for precise control over concrete flow
• Enamel paint finish

Specifications

• Volume Capacity (cu.m): 3.0
• Working Load Limit (kg) 7500
• Filling Height (mm) 1460
• Laydown Dimensions (mm)  3280 x 2010 x 2090
• Fork Pocket Size (mm) 185 x 85
• Pocket Centres (mm) 750
• Unit Weight (kg) 1100
• Lay Flat Hose Dimensions (mm) 200 diameter x 2000
